Centrifugal Fan

The outstanding feature of our centrifugal fans with forward curved blades is their minimum noise level and high power density. They are used wherever a large air volume has to be moved in a tight space. To adapt to the aerodynamic and geometric requirements, the impellers are arranged in single-inlet or dual-inlet form.

We have a wide range of Centrifugal Fans for all your requirements.

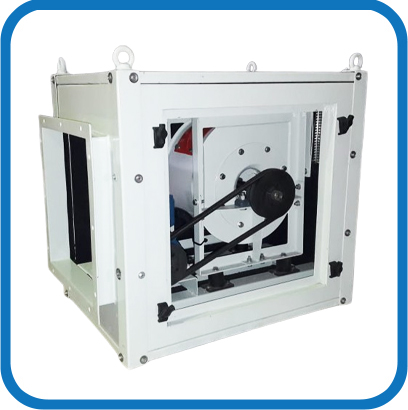

IN-LINE (Belt Drive)

MODEL: D-CAB-BD
Belt Drive
Flow Rate Range(CFM): 500 - 8,000
Static Pressure(Pa): 200 - 800
Capacity(kw): 0.37 to 7.5

Features :

•  Low noise level (40db to 70db)
•  Back ward inclined/ curved impeller
•  Dynamically balanced mild steel impeller
•  Mild steel casing
•  TEFC industrial duty motor
•  Finish Paint

Application :

•  Kitchen exhausts
•  General ventilation
•  Inline duct application

Optionals :

•  SS-304 Gr / SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating / EPR coated / Galvanized
•  Drain plug
•  Lifting pad eyes

IN-LINE (Belt Drive - Outside Airstream Application)

MODEL: D-BILB
Belt Drive
Flow Rate Range(CFM): 500 - 8,000
Static Pressure(Pa): 200 - 800
Capacity(kw): 0.37 to 7.5

Features :

•  Low noise level (40db to 70db)
•  Back ward inclined/ curved impeller
•  Dynamically balanced mild steel impeller
•  Mild steel casing
•  TEFC industrial duty motor
•  Finish Paint

Application :

•  Kitchen exhausts
•  General ventilation
•  Inline duct application

Optionals :

•  SS-304 Gr / SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating / EPR coated / Galvanized
•  Drain plug
•  Lifting pad eyes

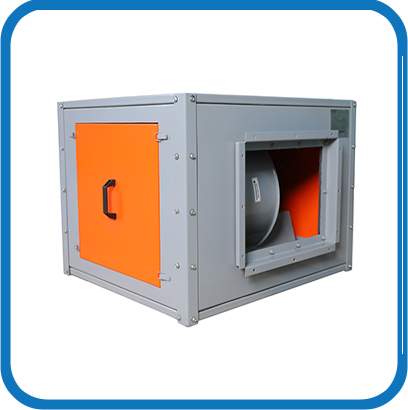

IN-LINE (Direct Drive)

MODEL: D-CAB-DD
Direct Drive
Flow Rate Range(CFM): 500 - 8,000
Static Pressure(Pa): 200 - 800
Capacity(kw): 0.37 to 7.5

Features :

•  Low noise level (40db to 70db)
•  Backward inclined / curved impeller
•  Dynamically balanced mild steel impeller
•  Mild steel casing
•  TEFC industrial duty motor
•  Finish paint

Application :

•  General ventilation
•  Inline duct application

Optionals :

•  SS-304 Gr/ SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating/ EPR coated/ Galvanized
•  Drain plug
•  Lifting pad eyes

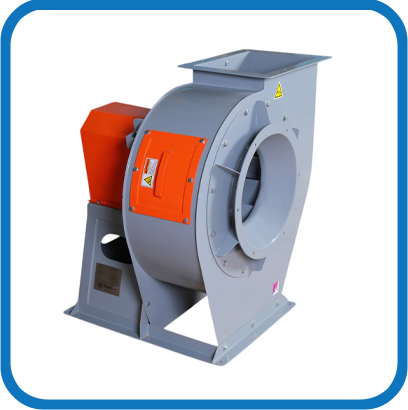

Axial Radial (Direct Drive)

MODEL:
Direct Drive: D-ARD
Flow Rate Range(CFM): 500 - 50,000
Static Pressure(Pa): 200 - 7000
Capacity(kw): 0.37 - 75

Features :

•  Axial inlet, Radial outlet
•  High flow rate with medium static pressure
•  Motor is out of air stream
•  Dynamically balanced Mild steel impeller
•  Mild steel housing
•  TEFC industrial duty motor
•  Finish paint

Application :

•  General Ventilation
•  Kitchen ventilation
•  Fume exhaust system
•  Dry / water wash paint booths
•  Fine dust extraction systems

Optionals :

•  SS-304 Gr/ SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating/ EPR coated/ Galvanized
•  Drain plug
•  Lifting pad eyes

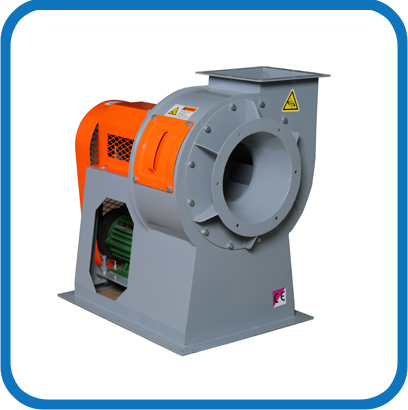

Axial Radial (Belt Drive)

MODEL:
Direct Drive: D-ARB
Flow Rate Range(CFM): 5000 - 80,000
Static Pressure(Pa): 200 -7000
Capacity(kw): 0.37 - 110

Features :

•  Axial inlet, Radial outlet
•  High flow rate with medium static pressure
•  Motor is out of air stream
•  Dynamically balanced Mild steel impeller
•  Mild steel housing
•  TEFC industrial duty motor
•  Finish paint

Application :

•  Commercial Kitchens exhaust
•  Usage in industries like cement, casting, extrusion, plastic, food processing

Optionals :

•  SS-304 Gr/ SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating/ EPR coated/ Galvanized
•  Drain plug
•  Lifting pad eyes

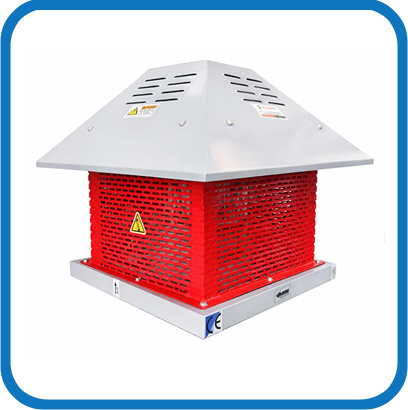

Roof Extractor

MODEL:
MODEL: D-RAR

Features :

•  Mild Steel impeller
•  Finished Enamel Paint
•  TEFC Industrial Duty Motor
•  Direct Drive / Belt Drive
•  Size - 12' to 32'dia
•  Mild Steel casting

Optionals :

•  Explosion Proof Motors (Ex)
•  Epoxy Coating / FRP Coated

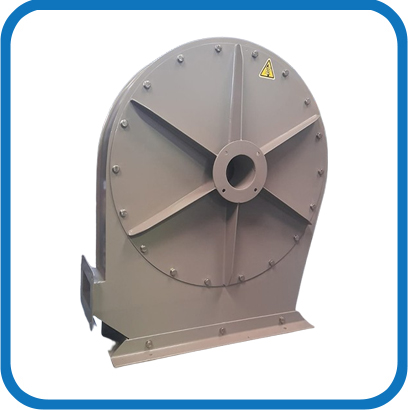

High Pressure Fans

MODEL:
Direct Drive: D-ARD_H
Flow Rate Range(CFM): 500 - 15,000
Static Pressure(Pa): 1000 - 10,000
Capacity(kw): 0.37 - 75

Features :

•  Dynamically balanced Mild steel radial blades
•  Low flow rate at high static pressure with high operating efficiencies
•  Mild steel housing
•  TEFC industrial duty motor
•  Finish Paint

Application :

•  Forced ventilation
•  Dust collection system
•  Air filtration system
•  Furnaces
•  Combustion air application

Optionals :

•  SS-304 Gr/ SS-316 Gr construction
•  ATEX motor
•  Inspection door
•  Epoxy coating/ EPR coated/ Galvanized
•  Drain plug
•  Lifting pad eyes

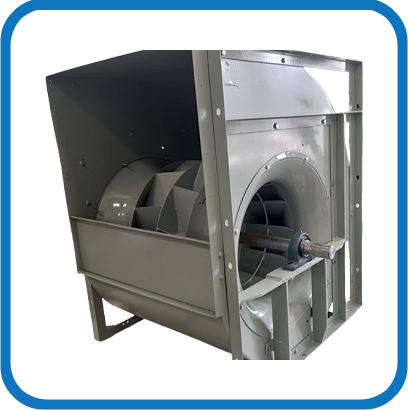

Double Width Double Inlet Fans

MODEL:
MODEL: DIDW
Flow rate (CFM): 500 – 55,000
Static pressure(Pa): 200 - 1500
Capacity(KW): 0.37 -55

Features :

•  High flow, medium static pressure
•  Heavy Duty Mild Steel / GI casing
•  Best suitable for Ecology unit housings
•  Low noise level
•  Belt Driven
•  Finished Enamel Paint

Optionals :

•  Explosion Proof Motors (Ex)
•  SS-304/SS-316 Construction
•  Powder Coated
