Axial Fans
A comprehensive range of high performance axial fans from 250mm to 2000mm diameter that will suit every application.
Their outstanding features are their small installation depth, low noise level and exceptional efficiency, and are particularly well suited for different applications mentioned below.
MODEL:

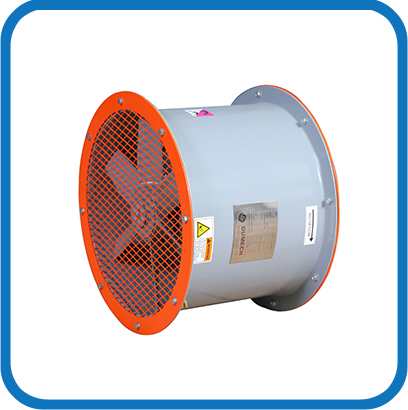

Direct Drive: D-TILD
Flow Rate Range(CFM): 700 - 40,000
Static Pressure(Pa): 50 - 500
Capacity(kw): 0.37 - 37
Features :
Direct Drive: D-TILD
Flow Rate Range(CFM): 700 - 40,000
Static Pressure(Pa): 50 - 500
Capacity(kw): 0.37 - 37
Features :
- Dynamically balanced aerofoil impeller
- Mild steel casing
- Adjustable pitch blade / Fixed blade
- TEFC industrial duty motor
- Sizes ranges from 12" to 62" dia
- Safety guard
- Finish Paint
Application :
Optionals :
- Cooling towers
- Condensers
- Food processing
- General Ventilation
- Generator engine room
- Generator radiator cooling
Optionals :
- ATEX motor
- Epoxy coating / Powder coating / FRP coated
- S-304 Gr / SS-316 Gr Construction
MODEL:

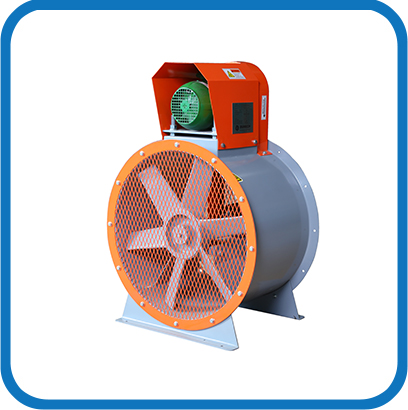

Belt Drive: D-TILB
Flow Rate Range(CFM): 700 - 18,000
Static Pressure(Pa): 50 - 300
Capacity(kw): 0.37 - 11.1
Features :
Belt Drive: D-TILB
Flow Rate Range(CFM): 700 - 18,000
Static Pressure(Pa): 50 - 300
Capacity(kw): 0.37 - 11.1
Features :
- Dynamically balanced aerofoil impeller
- Mild steel casing
- Adjustable pitch blade / Fixed blade
- TEFC industrial duty motor
- Sizes ranges from 12" to 40" dia
- Safety guard
- Finish Paint
Application :
Optionals :
- Cooling towers
- Condensers
- Food processing
- General Ventilation
- Dry / water Curtain / Water wash spray booths
Optionals :
- ATEX motor
- Epoxy coating/Powder coating/ FRP coated
- S-304 Gr / SS-316 Gr Construction
MODEL:

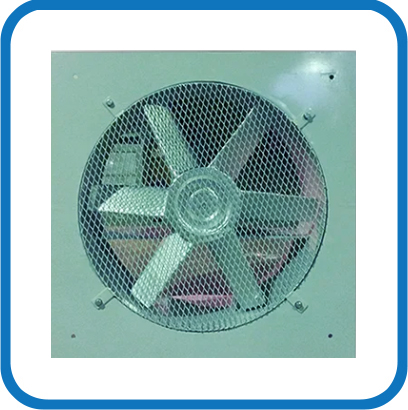

Direct Drive: D-PMD
Flow Rate Range(CFM): 700 - 12,000
Static Pressure(Pa): 50 - 180
Capacity(kw): 0.5 - 4
Features :
Direct Drive: D-PMD
Flow Rate Range(CFM): 700 - 12,000
Static Pressure(Pa): 50 - 180
Capacity(kw): 0.5 - 4
Features :
- Fixed / Adjustable Pitch
- Aluminum Casted Aerofoil impeller
- Mild steel frame with panel
- TEFC industrial duty motor
- Reversible flow blade
- Size: 12" to 32" dia (Axial)
- Finished Enamel Paint
Application :
Optionals :
- General Ventilation
Optionals :
- ATEX motor
- Epoxy coating / FRP coated
- SS-304 Gr / SS-316 Gr Construction
MODEL:

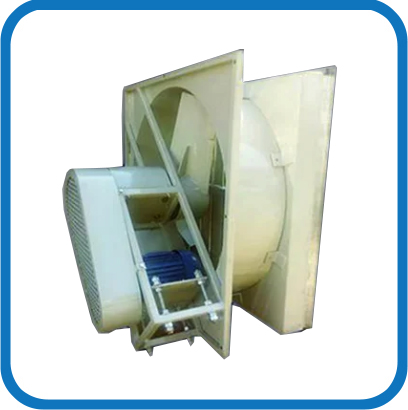

Model: D-WMB
Flow Rate Range(CFM): 6000 - 12,000
Static Pressure(Pa): 50 - 500
Capacity(kw): 0.5 - 2.2
Features :
Model: D-WMB
Flow Rate Range(CFM): 6000 - 12,000
Static Pressure(Pa): 50 - 500
Capacity(kw): 0.5 - 2.2
Features :
- Dynamically balanced aerofoil impeller
- Mild steel casing & impeller
- TEFC industrial duty motor
- Gravity louvers
- Sizes ranges from 28" to 40" dia
- Finished Enamel Paint
Application :
Optionals :
- General Ventilation
Optionals :
- ATEX motor
- Epoxy coating / FRP coated
- SS-304 Gr / SS-316 Gr Construction
MODEL:
Direct Drive: D-PEAD
Flow Rate Range(CFM): 700 - 18,000
Static Pressure(Pa): 50 - 350
Capacity(kw): 0.37 - 11.11
Features :
Direct Drive: D-PEAD
Flow Rate Range(CFM): 700 - 18,000
Static Pressure(Pa): 50 - 350
Capacity(kw): 0.37 - 11.11
Features :
- Aluminum casted blades
- Size ranges from 12" to 40" dia
- High flow rate
- Aerofoil design
- Low noise level
- Reversible flow blades
- Tilting angle up to 60 degrees with adjustable knob
- Mild steel casing
- Direct drive
- TEFC industrial duty motor
- Safety mesh
Application :
Optionals :
- Paint drying purpose
- Man cooler in industries
- Engine cooling application
Optionals :
- SS-304 Gr/ SS-316 Gr construction
- ATEX motor
- Epoxy coating / EPR coated / Galvanized
- Castor wheels
- Lifting pad eyes
MODEL:
Direct Drive: D-RAD
Flow Rate Range(CFM): 700 - 10,000
Static Pressure(Pa): 50 - 180
Capacity(kw): 0.37 - 3
Features :
Direct Drive: D-RAD
Flow Rate Range(CFM): 700 - 10,000
Static Pressure(Pa): 50 - 180
Capacity(kw): 0.37 - 3
Features :
- Dynamically balanced aerofoil impeller
- Roof cowl made of Mild steel with Epoxy coating.
- Mild steel casing
- TEFC industrial duty motor
- Sizes ranges from 12" to 32" dia
- Bird mesh
- Designed for roof installation with base support
- Finish Paint
Application :
Optionals :
- General ventilation/ fume extraction in Buildings, Industries etc
Optionals :
- SS-304 Gr / SS-316 Gr construction
- ATEX motor
- Epoxy coating / FRP coated / Galvanized
MODEL:

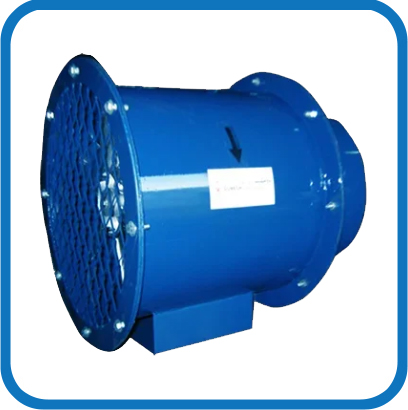

Direct Drive: D-PAD
Flow Rate Range(CFM): 700 - 3,000
Static Pressure(Pa): 50 - 200
Capacity(kw): 0.37 - 1.5
Features :
Direct Drive: D-PAD
Flow Rate Range(CFM): 700 - 3,000
Static Pressure(Pa): 50 - 200
Capacity(kw): 0.37 - 1.5
Features :
- Aluminum casted blades
- Aerofoil design
- Low noise level
- Reversible flow blades
- Mild steel casing
- Sizes ranges from 12" to 18" dia
- Direct drive
- TEFC industrial duty motor
Application :
Optionals :
- Temporary ventilation for engine rooms
- Extract welding fumes and grinding particles
Optionals :
- Propeller side guard
- ATEX motor
- SS-304 Gr/ SS-316 Gr construction
- PVC flexible hose with connector
